Rust Free World

GFRP Mesh

Pre-fabricated Reinforcement for
Rapid Construction

Ready-to-install, highly durable fiberglass grids designed to reinforce concrete flatwork, precast panels, and shotcrete exponentially faster than tying rebar.

Product Overview

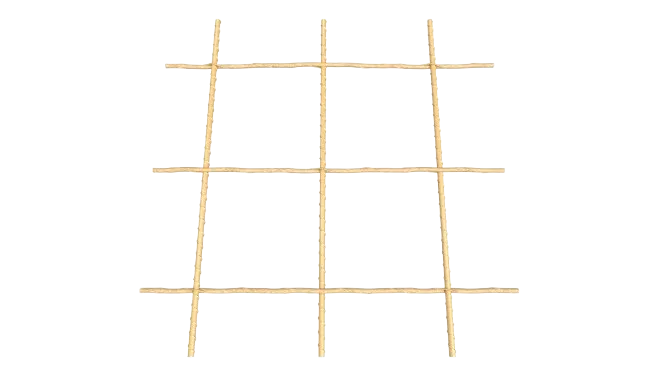

What is GFRP Mesh?

GFRP Mesh consists of high-strength glass fiber rebars arranged in an intersecting grid pattern and bonded together with industrial-grade resins. Instead of laboriously tying hundreds of individual bars together by hand on site, construction crews can instantly lay down these ready-made, lightweight panels. Because they never rust, GFRP meshes require far less concrete cover than steel mesh, allowing for thinner, lighter, and more economical concrete slabs without the risk of rust bleeding.

GFRP Mesh

ISO 9001:2015

ACI 440.1R

TENSILE > 1000 MPa

100% RUST-FREE

Bhandari TechFab
What is
Expansive Flatwork
Precast Concrete Panels
Benifits

Key Advantages

Discover why our GFRP solutions outperform traditional materials in every category.

Accelerated Installation

Pre-tied large grid panels mean significantly less labor time on site, reducing installation time by up to 60%.

Zero Rust Stains

Ensures architectural concrete and stamped concrete remain pristine without ugly rust bleeding to the surface.

Reduced Concrete Cover

Since GFRP doesn't rust, you can reduce the depth of the concrete cover, saving massive amounts on concrete volumes.

Performance Data

Technical Specifications

Engineered to exceed industry standards, our GFRP products deliver unmatched structural performance.

Grid SpacingCustomizable (typically 100x100mm to 300x300mm)
Available Bar Diameters3mm to 12mm
Intersection BondingHigh-strength epoxy bind / mechanical clips
Tensile Strength (Per Bar)> 1000 MPa
Maximum Panel SizesUp to 2.4m x 6.0m (custom available)
Use Cases

Ideal Applications

Built to perform in the world's most demanding environments.

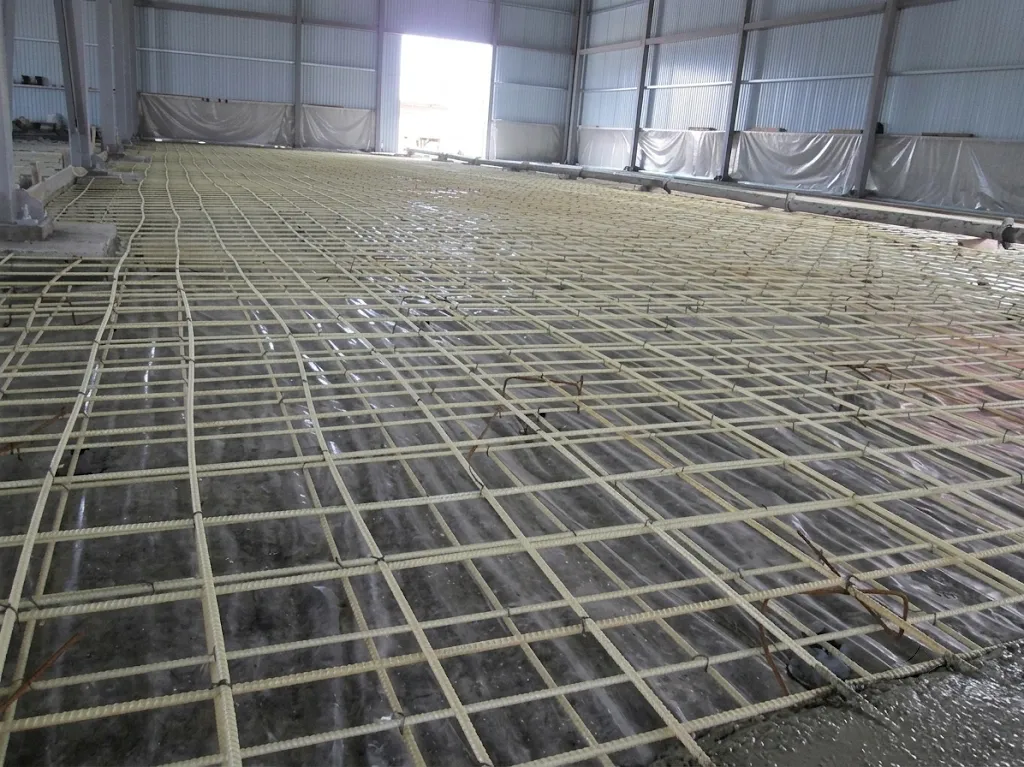

Expansive Flatwork
01

Expansive Flatwork

Driveways, sidewalks, and massive warehouse floors requiring shrinkage control.

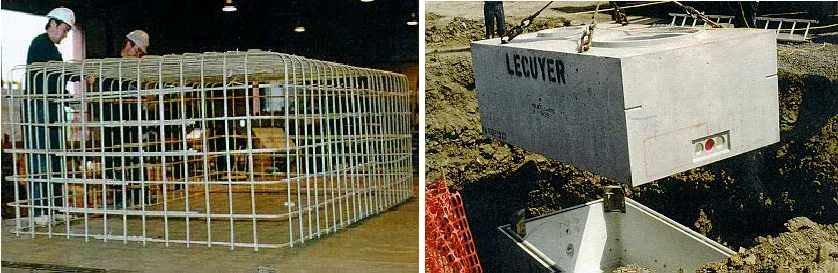

Precast Concrete Panels
02

Precast Concrete Panels

Enables thinner, lighter precast architectural panels due to reduced concrete cover requirements.

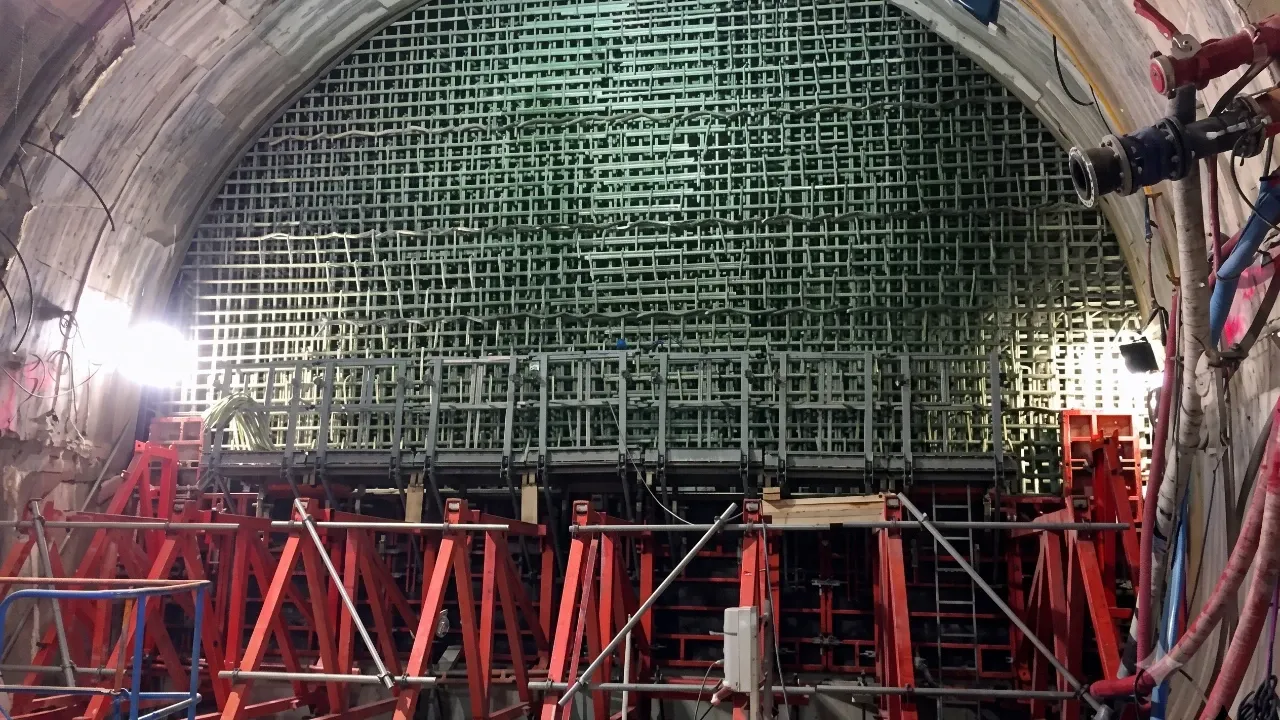

Tunneling & Shotcrete
03

Tunneling & Shotcrete

Easily manipulated and applied reinforcement for curved tunnel walls and mines.

Available Options

Sizes & Variants

We offer a comprehensive range of dimensions to suit any structural requirement.

Size / Dimension3mm - 4mm, 150x150mm
WeightUltra-Light
ApplicationSidewalks, Stamped Concrete, Shotcrete
Size / Dimension6mm, 150x150mm
WeightLight
ApplicationDriveways, Light Parking Slabs
Size / Dimension8mm, 200x200mm
WeightMedium
ApplicationWarehouse Floors, Industrial flatwork
Smart Investment

Calculate Your Cost Savings

See exactly how much you can save by switching from traditional steel to BTF GFRP Rebar. Enter your project details below for an instant estimate.

Project Parameters

Total quantity of steel estimated for the project.

GFRP is typically 75% lighter than steel.

Current market rate for standard steel rebar.

Price of BTF GFRP Rebar.

Corrosive Environment

Include maintenance & repair costs in savings calculation

Expected lifespan of the concrete structure.

Frequency of required maintenance.

Estimated cost of each repair cycle.

Estimated Total Savings

₹14,30,000

Material Required

7,500 kg Saved
Steel (Traditional)10,000 kg
BTF GFRP Rebar2,500 kg

Financial Breakdown

Steel Cost₹6,50,000
Steel Repair Cost (3 cycles)₹7,80,000
Total Steel Cost (Material + Repair)₹14,30,000
GFRP Cost (Zero Maintenance)₹0
Got Questions?

Frequently Asked Questions

Everything you need to know about GFRP rebar, our manufacturing process, and how we can support your next project.

Due to the exceptionally high stiffness and tensile strength of our GFRP, it is supplied strictly in flat panels or sheets, not in rolls like low-strength thin wire meshes.

Ready to build the future of construction?

Join the leading engineers who trust Bhandari GFRP Rebar for lighter, stronger, and corrosion-free structures.
