Rust Free World

GFRP Rebars (3mm - 32mm)

Advanced Future of
Concrete Reinforcement

High-strength, 75% lighter, and 100% corrosion-resistant Glass Fiber Reinforced Polymer rebars engineered to outlast conventional steel and deliver a 100+ year service life.

Product Overview

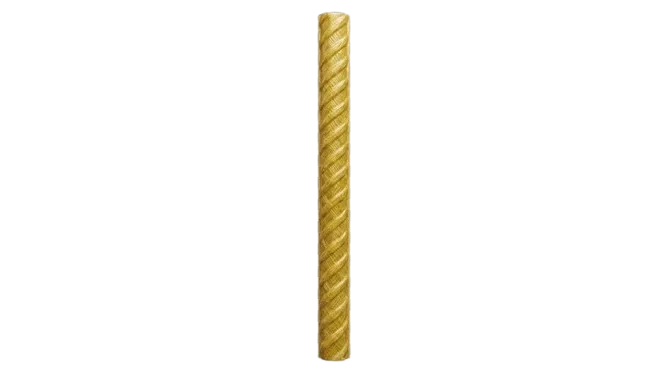

What are GFRP Rebars?

GFRP (Glass Fiber Reinforced Polymer) Rebars are advanced composite reinforcement materials made from high-strength glass fibers bonded within a premium polymer resin matrix. Unlike traditional TMT steel bars, GFRP rebars are completely non-metallic, meaning they will absolutely never rust or corrode, even in the harshest chloride-rich environments. Designed in accordance with global standards like ACI 440.1R, they offer over twice the tensile strength of steel at just one-quarter of the weight.

GFRP Rebars

ISO 9001:2015

ACI 440.1R

TENSILE > 1000 MPa

100% RUST-FREE

Bhandari TechFab
What are
Marine & Coastal Structures
Transportation Infrastructure
Benifits

Key Advantages

Discover why our GFRP solutions outperform traditional materials in every category.

100% Corrosion Resistant

Impervious to chloride ions, de-icing salts, and harsh chemicals. Eliminates concrete spalling and extends structural lifespan to 100+ years.

Superior Tensile Strength

Provides a tensile strength of >1000 MPa, which is 2x to 3x stronger than standard Fe500 steel reinforcement.

Ultra Lightweight

Weighs 75% less than steel. This drastically reduces transportation costs, simplifies onsite handling, and minimizes labor fatigue.

Performance Data

Technical Specifications

Engineered to exceed industry standards, our GFRP products deliver unmatched structural performance.

Tensile Strength> 1000 MPa (Varies by diameter)
Modulus of Elasticity45 - 60 GPa
Density1.9 - 2.1 g/cm³ (Steel is 7.85 g/cm³)
Bond Strength to Concrete> 14 MPa
Electrical ConductivityNon-conductive (Dielectric)
Weight Advantage

GFRP vs Metal Weight Comparison

See exactly how much lighter GFRP rebars are compared to standard metal rebars per 12 meter bar, massively reducing transport and labor costs.

Detailed Weight ComparisonSwipe horizontally →

BTF GFRP REBARS

METAL REBARS

Diameter
Weight(Per 12 meter bar)
vs
Diameter
Weight(Per 12 meter bar)
3.0 mm
0.185 Kg
=
-----
-----
3.5 mm
0.280 Kg
=
-----
-----
4.5 mm
0.468 Kg
=
06 mm
2.75 Kg
6.0 mm
0.570 Kg
=
08 mm
4.74 Kg
7.0 mm
0.900 Kg
=
10 mm
7.40 Kg
8.0 mm
1.200 Kg
=
12 mm
10.65 Kg
10.0 mm
1.600 Kg
=
14 mm
14.52 Kg
12.0 mm
2.400 Kg
=
16 mm
18.92 Kg
14.0 mm
3.240 Kg
=
18 mm
24.00 Kg
16.0 mm
4.870 Kg
=
22 mm
35.76 Kg
18.0 mm
6.280 Kg
=
25 mm
46.22 Kg
20.0 mm
8.080 Kg
=
28 mm
58.02 Kg
22.0 mm
9.800 Kg
=
32 mm
75.79 Kg
25.0 mm
11.670 Kg
=
40 mm
118.52 Kg
Use Cases

Ideal Applications

Built to perform in the world's most demanding environments.

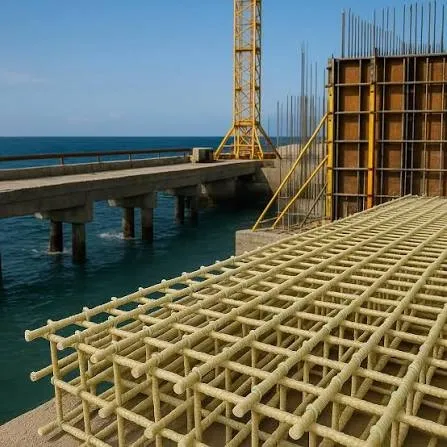

Marine & Coastal Structures
01

Marine & Coastal Structures

Sea walls, piers, and docks exposed directly to highly corrosive saltwater and tides.

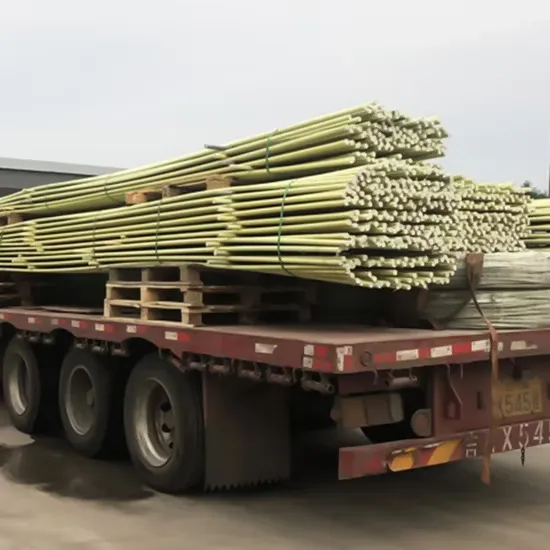

Transportation Infrastructure
02

Transportation Infrastructure

Bridge decks, highway barriers, and roads continuously exposed to de-icing salts.

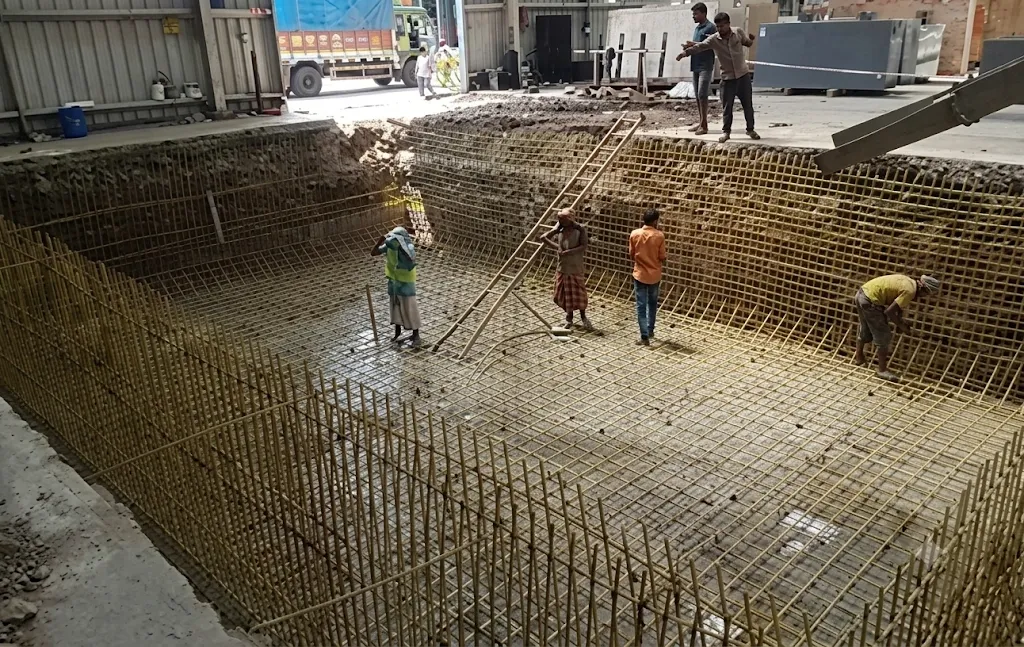

Hospitals & Research Labs
03

Hospitals & Research Labs

MRI rooms and specialized facilities requiring complete electromagnetic neutrality.

Available Options

Sizes & Variants

We offer a comprehensive range of dimensions to suit any structural requirement.

Size / Dimension3mm - 6mm
Weight0.02 - 0.06 kg/m
ApplicationSlabs, Micro-piles, Crack control
Size / Dimension8mm - 12mm
Weight0.10 - 0.23 kg/m
ApplicationWalls, Pools, Driveways, Decks
Size / Dimension16mm - 20mm
Weight0.41 - 0.65 kg/m
ApplicationMarine structures, Retaining walls
Size / Dimension25mm - 32mm
Weight1.02 - 1.65 kg/m
ApplicationHeavy duty infrastructure, Bridges
Smart Investment

Calculate Your Cost Savings

See exactly how much you can save by switching from traditional steel to BTF GFRP Rebar. Enter your project details below for an instant estimate.

Project Parameters

Total quantity of steel estimated for the project.

GFRP is typically 75% lighter than steel.

Current market rate for standard steel rebar.

Price of BTF GFRP Rebar.

Corrosive Environment

Include maintenance & repair costs in savings calculation

Expected lifespan of the concrete structure.

Frequency of required maintenance.

Estimated cost of each repair cycle.

Estimated Total Savings

₹14,30,000

Material Required

7,500 kg Saved
Steel (Traditional)10,000 kg
BTF GFRP Rebar2,500 kg

Financial Breakdown

Steel Cost₹6,50,000
Steel Repair Cost (3 cycles)₹7,80,000
Total Steel Cost (Material + Repair)₹14,30,000
GFRP Cost (Zero Maintenance)₹0
Got Questions?

Frequently Asked Questions

Everything you need to know about GFRP rebar, our manufacturing process, and how we can support your next project.

While the initial material cost may be marginally higher, GFRP provides massive savings on transportation, labor (faster installation), and eliminates future maintenance costs. Over a 50-year lifecycle, GFRP is significantly more cost-effective.

Ready to build the future of construction?

Join the leading engineers who trust Bhandari GFRP Rebar for lighter, stronger, and corrosion-free structures.
